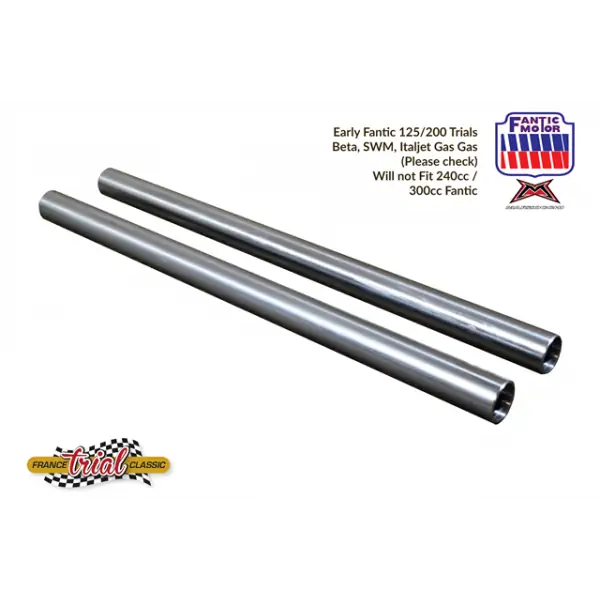

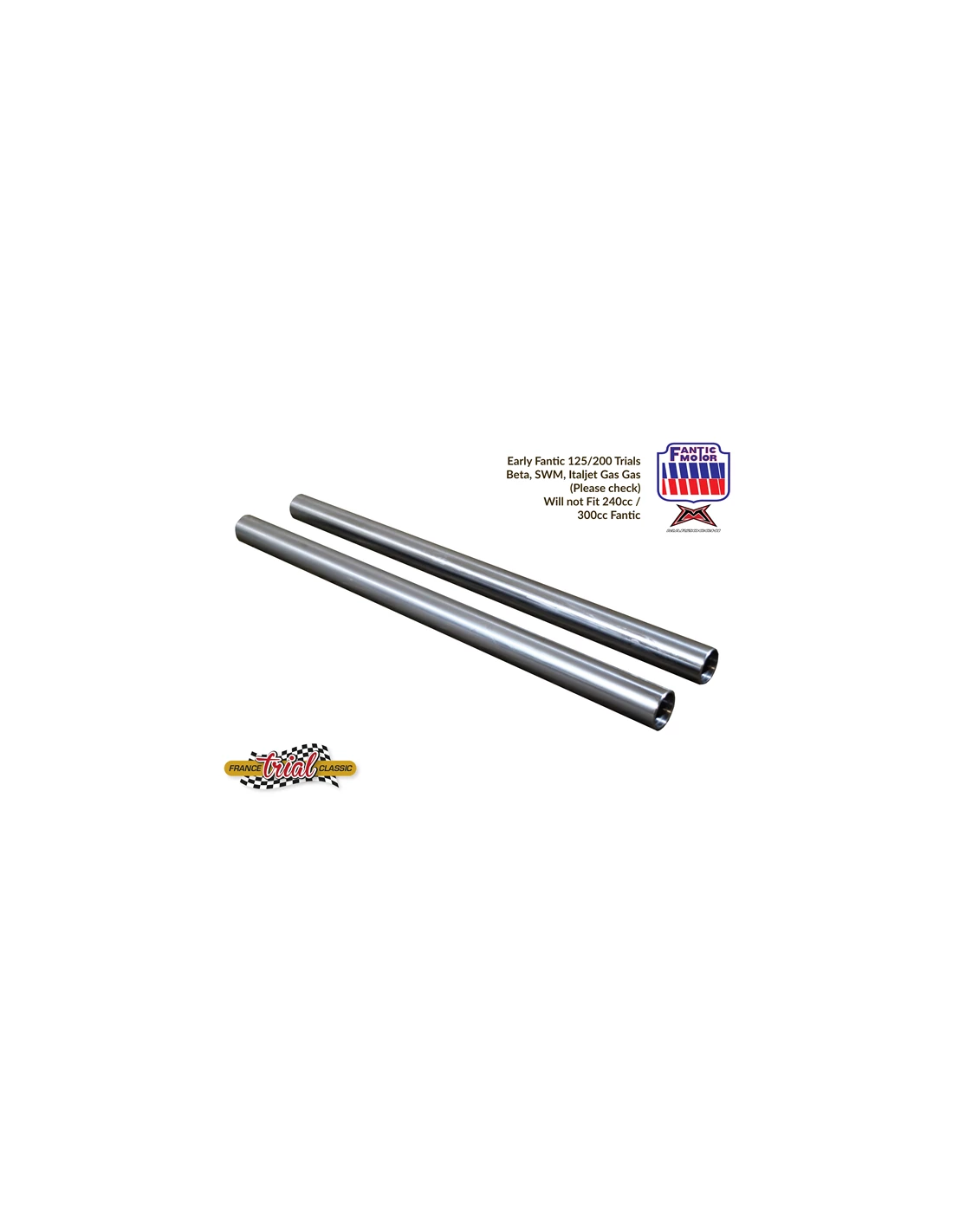

Pair of fork tubes

Suitable for Fantic 125 (TX250) and Fantic 200 (TX350) models fitted with 35 mm forks.

Dimensions: Ø 35 × 580 mm  |  Supplied as: one pair

Internal shoulder located 20 mm from the end of the tube. Check this measurement on your original tubes before ordering (see diagram in the description).

Last items in stock
€158.95
Tax included

Loyalty Program
Buy this product and earn 158 loyalty points , worth €3.16 towards your next order.
Reward points are credited once your order has been validated.

Description

Pair of fork tubes for Fantic 125 (TX250) and Fantic 200 (TX350).

This reproduction has been manufactured to specifications matching the dimensions of the original fork tubes. It allows worn, scratched or damaged tubes to be replaced.

Specifications

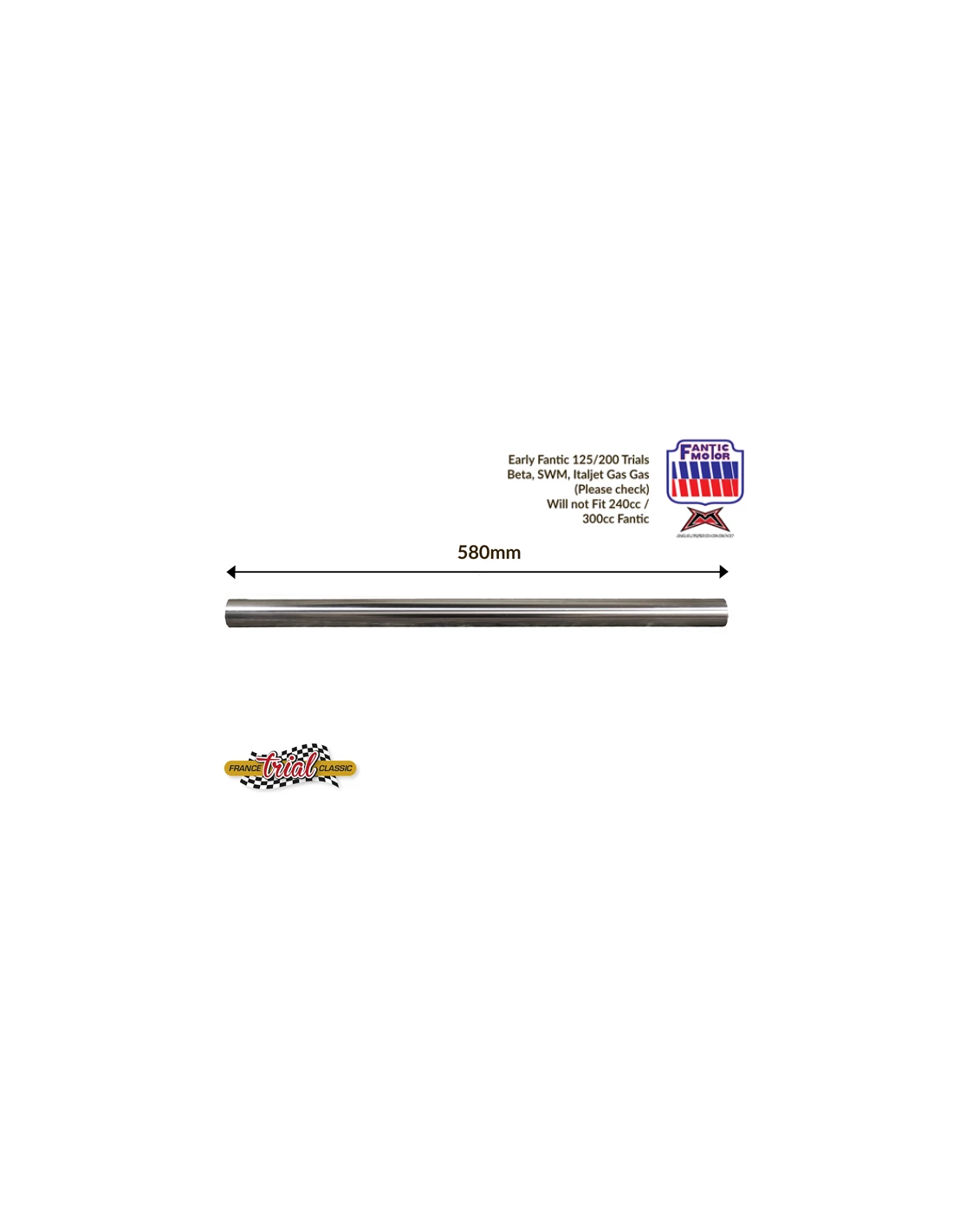

  • Length: 580 mm

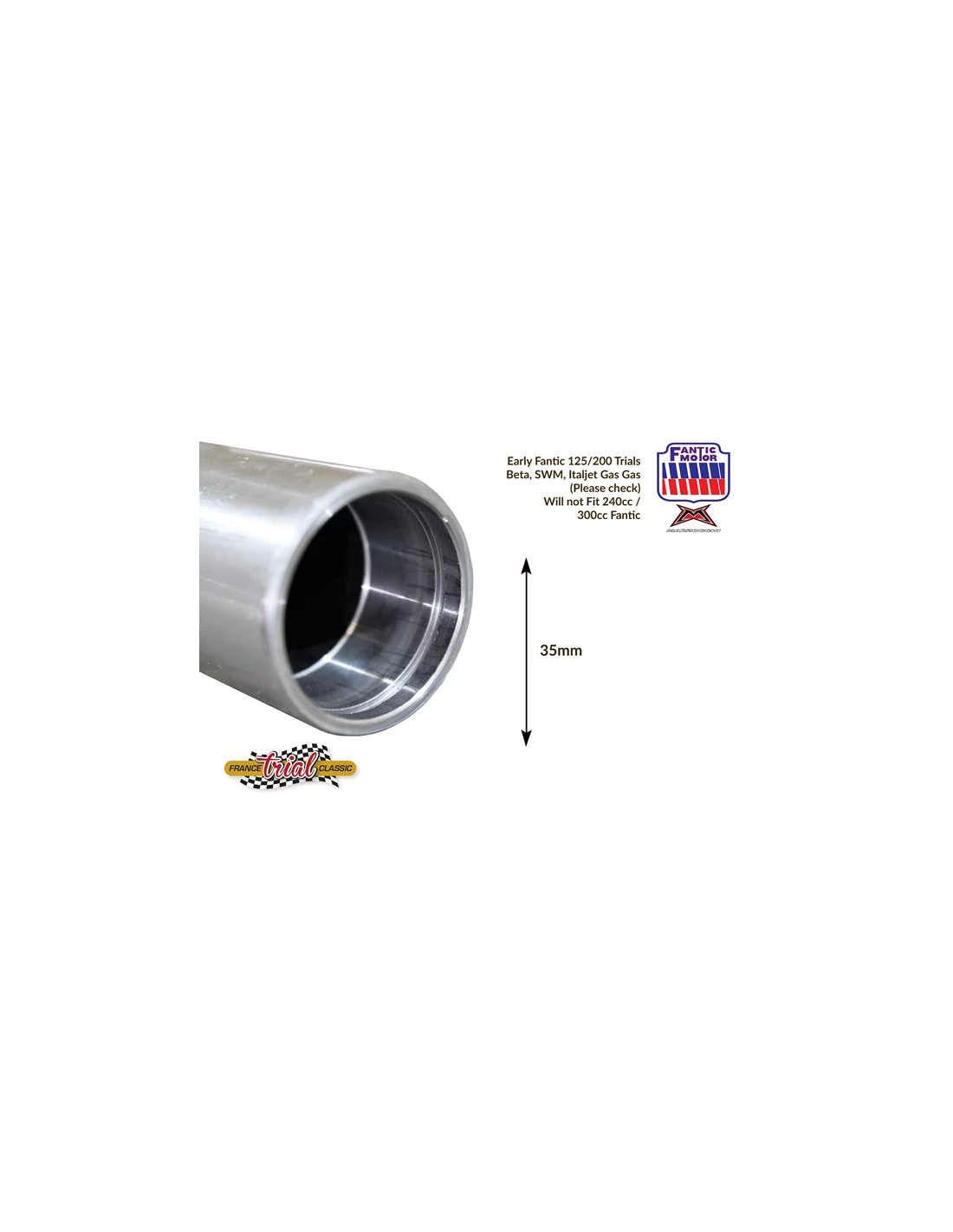

  • Outside diameter: 35 mm
  • Internal shoulder depth: 20 mm from the end of the tube shown in the diagram below
  • Manufacture: modern reproduction
  • Supplied as: two fork tubes

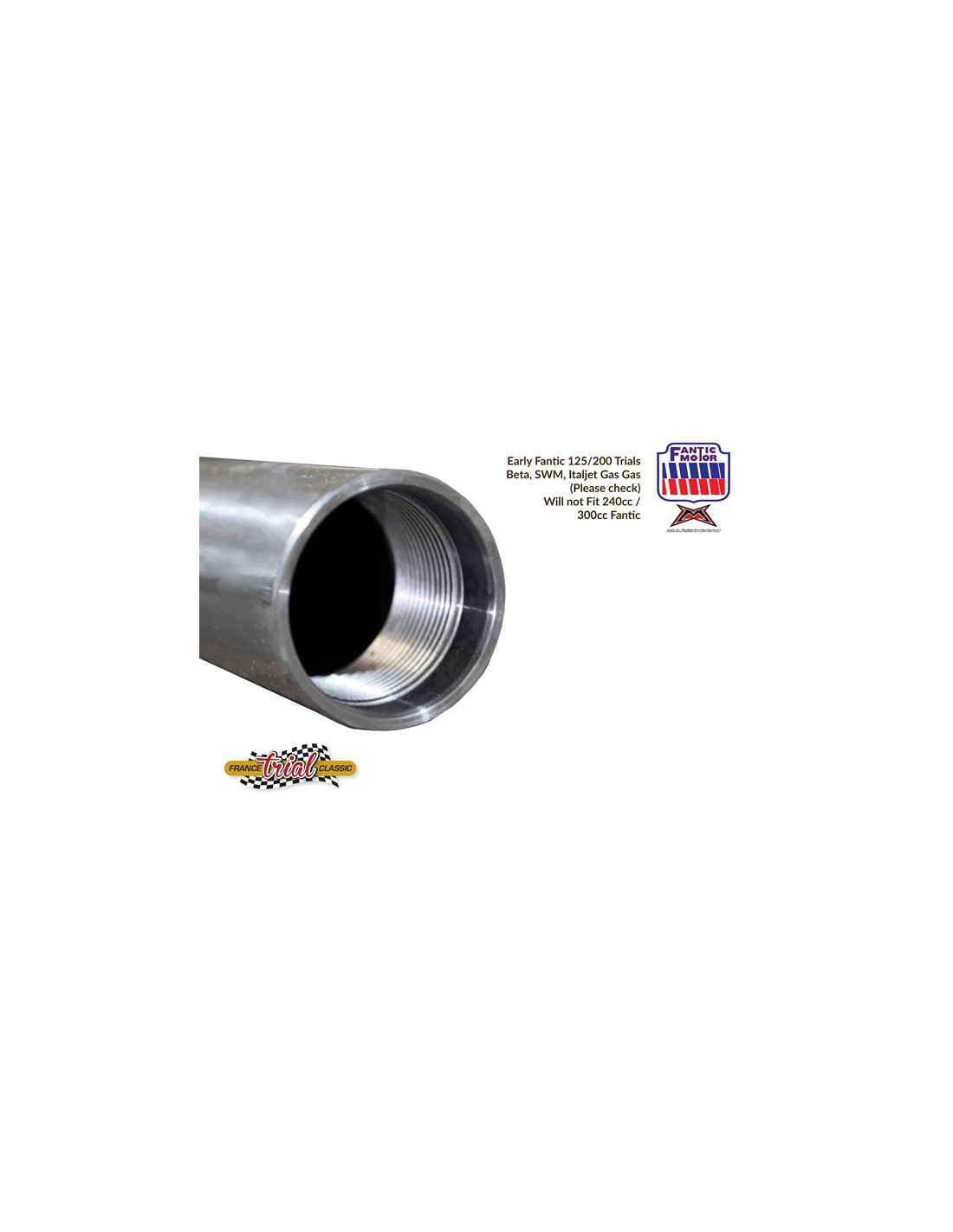

Identifying the internal shoulder

On this TX250 / TX350 version, the internal shoulder is located 20 mm from the end of the tube. This measurement distinguishes it from the FM250 / FM350 version, which has an internal shoulder depth of 50 mm. Check this depth on your original tubes, measuring from the same end.

Cross-sectional diagram of Fantic TX250 / TX350 fork tubes: internal shoulder located 20 mm from the end of the tube.

Compatibility:

  • Fantic 125 (TX250) fitted with 35 mm forks
  • Fantic 200 (TX350) fitted with 35 mm forks

Important: some Fantic 125 (TX250) models are fitted with 32 mm fork tubes. This pair is suitable only for models fitted with 35 mm forks. Before ordering, check the outside diameter, length and internal shoulder depth of your original tubes. Diameter and length alone are not sufficient to distinguish the TX250 / TX350 version from the FM250 / FM350 version.

The price shown is for two fork tubes, supplied as one pair.

Product Details

Compatibility
Fantic
TUBEFAN1-J
1 Item
