Fantic 125 (FM250) & 200 (FM350) Front fork tubes
Fantic 125 (FM250) & 200 (FM350) Front fork tubes
Fantic 125 (FM250) & 200 (FM350) Front fork tubes
Fantic 125 (FM250) & 200 (FM350) Front fork tubes
Fantic 125 (FM250) & 200 (FM350) Front fork tubes
Fantic 125 (FM250) & 200 (FM350) Front fork tubes
Fantic 125 (FM250) & 200 (FM350) Front fork tubes
Fantic 125 (FM250) & 200 (FM350) Front fork tubes

Fantic 125 (FM250) & 200 (FM350) Front fork tubes

Pair of fork tubes

Suitable for later Fantic 125 (FM250) and Fantic 200 (FM350) models fitted with twin wheel spindle pinch bolts.

Dimensions: Ø 35 × 580 mm  |  Supplied as: one pair

Internal shoulder located 50 mm from the end of the tube. Check this measurement on your original tubes before ordering (see diagram in the description).

Rupture de stock
€158.95
Tax included


Loyalty Program
Buy this product and earn 158 loyalty points , worth €3.16 towards your next order.
Reward points are credited once your order has been validated.

Description

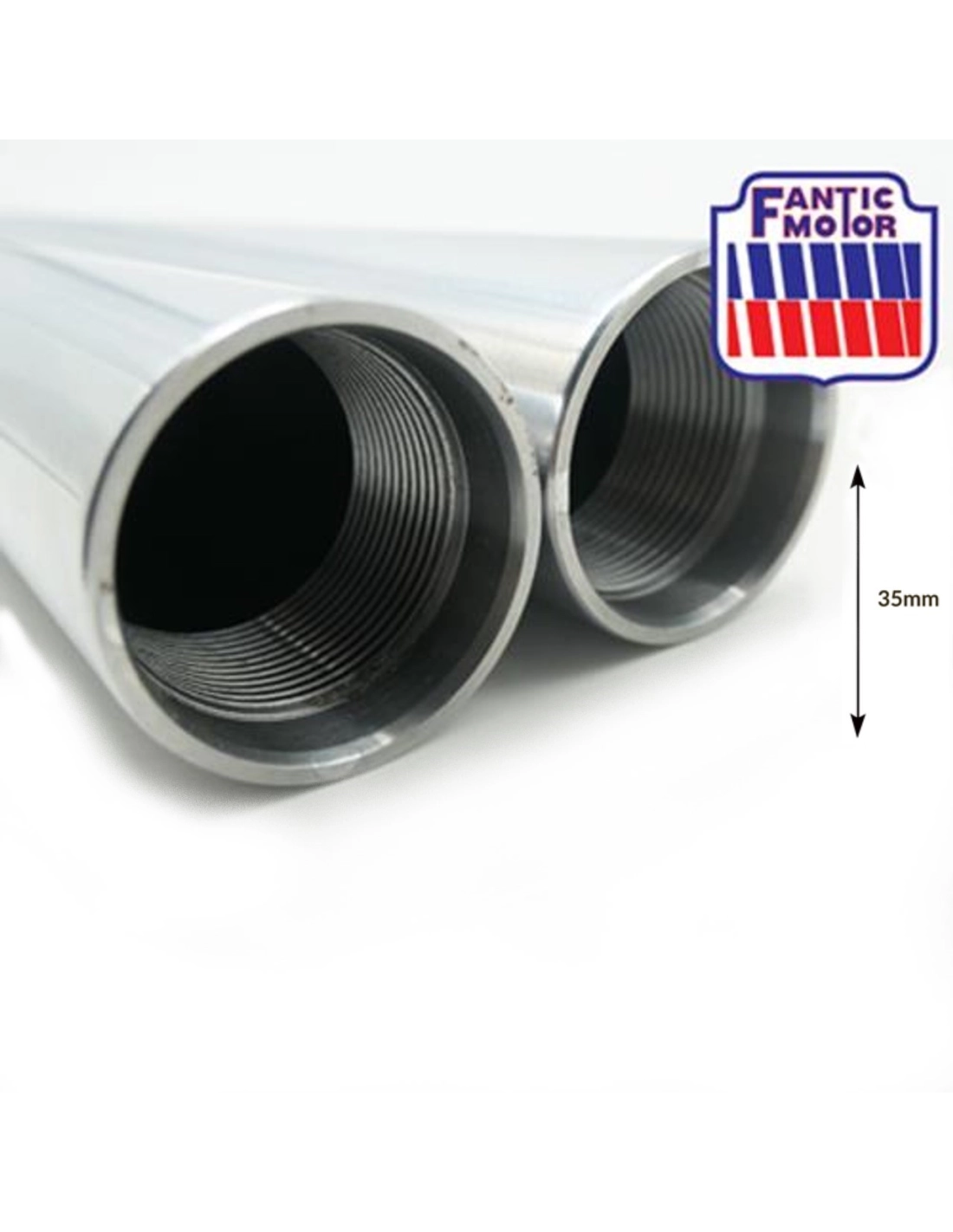

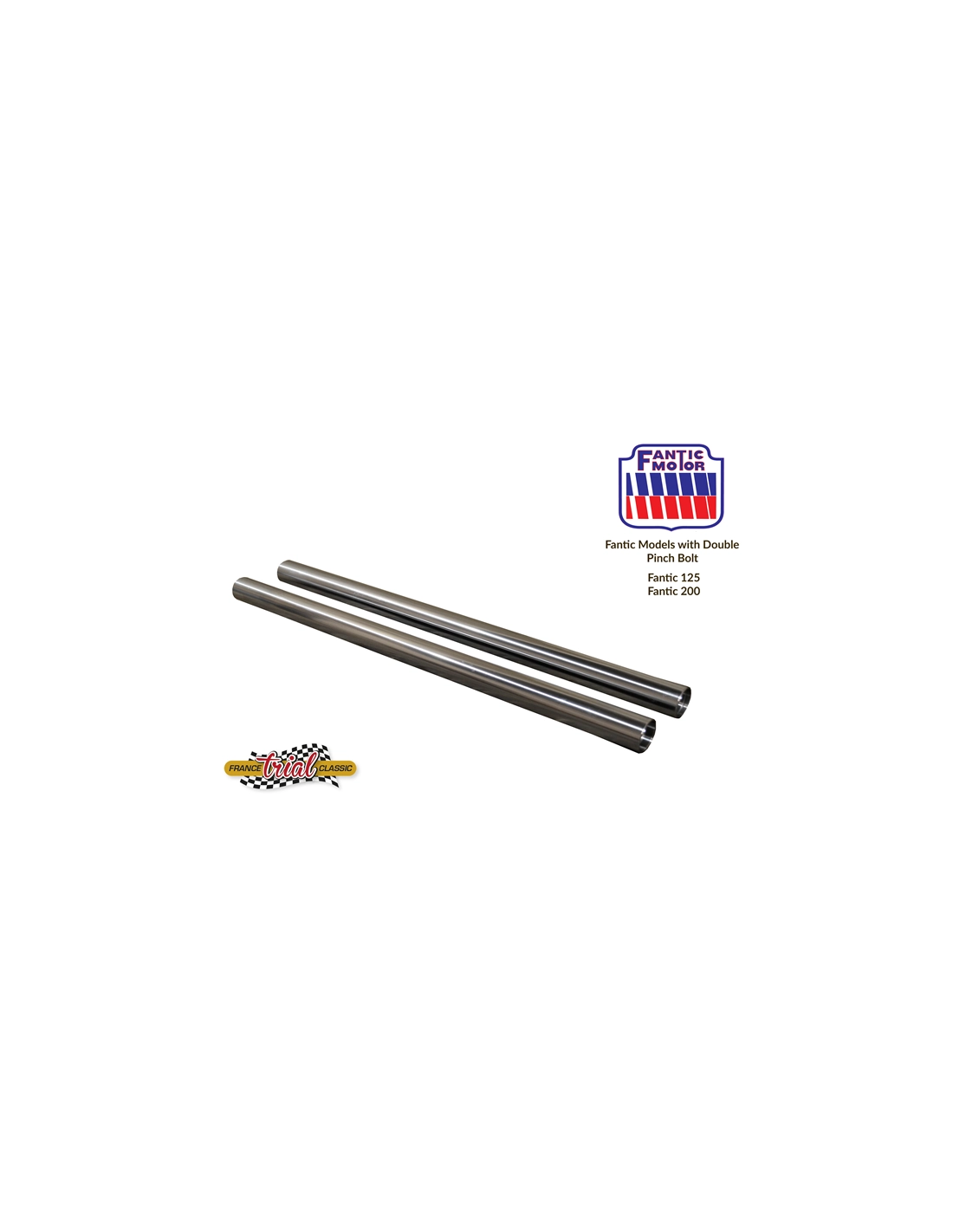

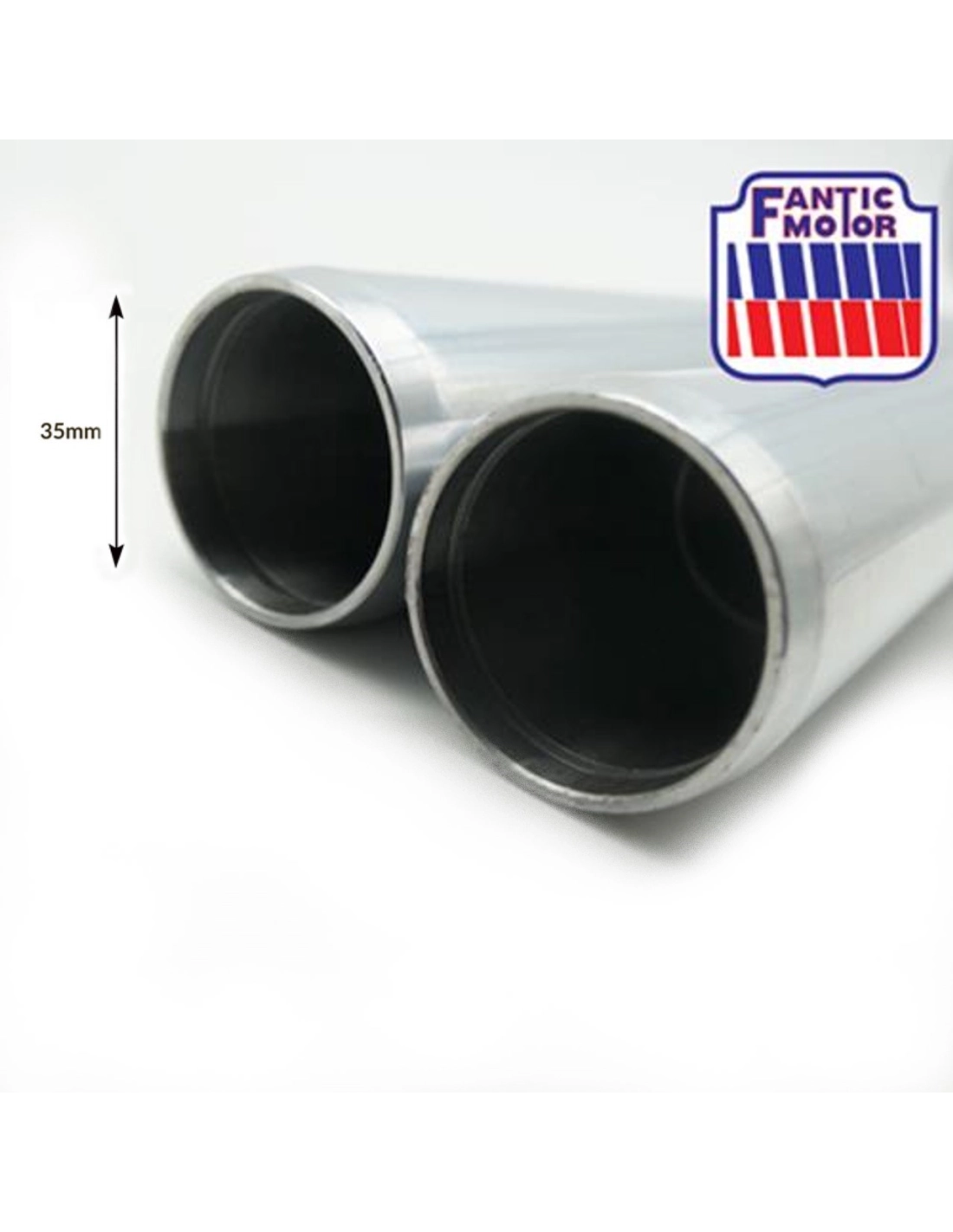

Pair of fork tubes for Fantic 125 (FM250) and Fantic 200 (FM350), with a diameter of 35 mm and a length of 580 mm.

These tubes are intended for later Fantic 125 and 200 models fitted with two pinch bolts on the lower fork leg where the wheel spindle is clamped.

Specifications

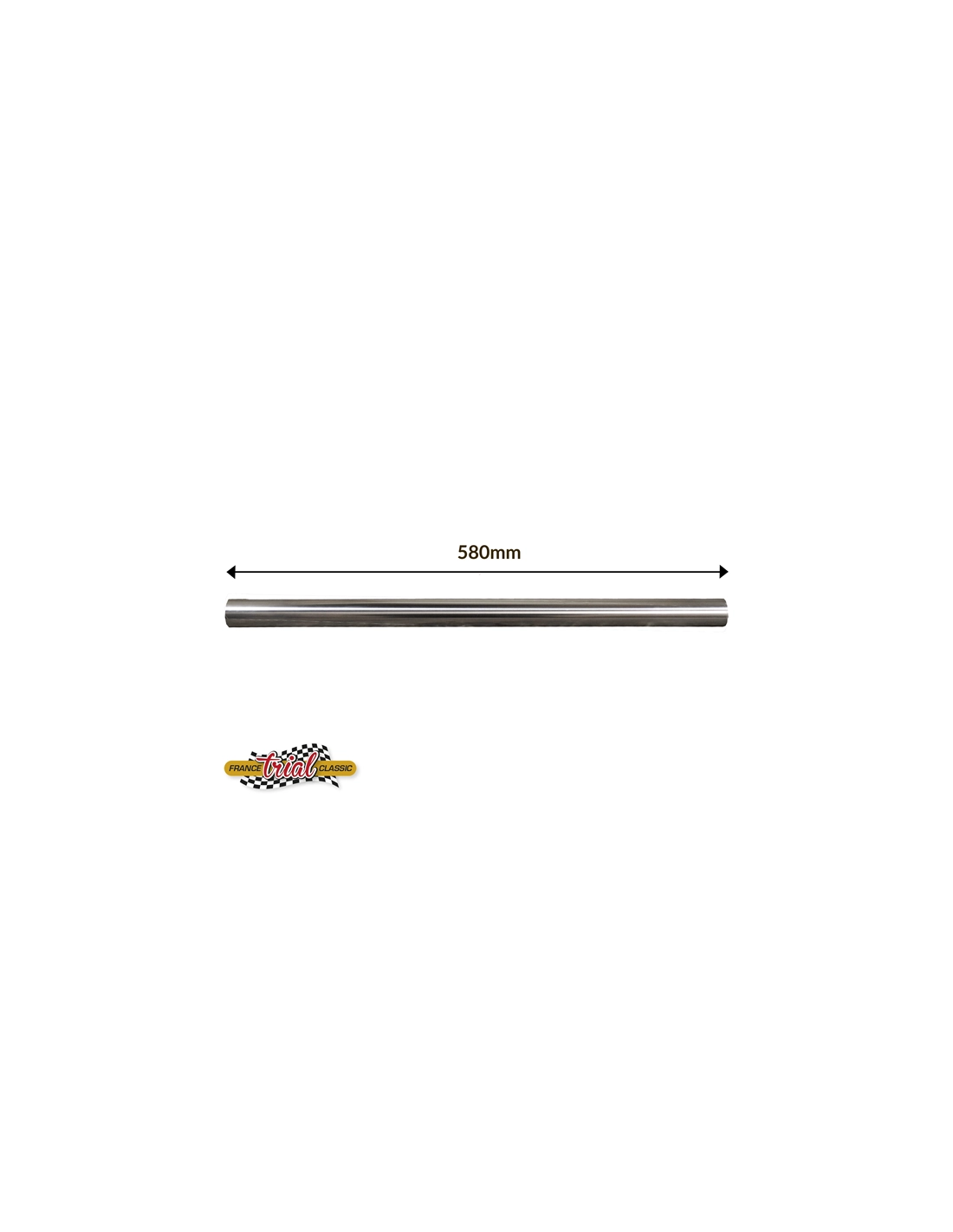

  • Length: 580 mm
  • Outside diameter: 35 mm
  • Internal shoulder depth: 50 mm from the end of the tube shown in the diagram below
  • Fitment: forks with twin wheel spindle pinch bolts
  • Supplied as: two fork tubes

Identifying the internal shoulder

On this FM250 / FM350 version, the internal shoulder is located 50 mm from the end of the tube. This measurement distinguishes it from the TX250 / TX350 version, which has an internal shoulder depth of 20 mm. Check this depth on your original tubes, measuring from the same end.

Cross-sectional diagram of Fantic FM250 / FM350 fork tubes: internal shoulder located 50 mm from the end of the tube.

Compatibility:

  • Fantic 125 (FM250), 1982–1989, with the fork arrangement described above
  • Fantic 200 (FM350), 1982–1989, with the fork arrangement described above

Important: earlier models have a single pinch bolt and use a different fork design. Before ordering, check the fork arrangement, outside diameter, length and internal shoulder depth of your original tubes. Diameter and length alone are not sufficient to distinguish the FM250 / FM350 version from the TX250 / TX350 version.

The price shown is for two fork tubes, supplied as one pair.

Product Details

Compatibility
Fantic
TUBEFAN4-J
