Keyed electronic ignition for the Yamaha TY 125 and TY 175, with variable ignition advance and 12 V lighting. The system is preset, so there is no need to calculate the ignition timing. Its 3.5 kg rotor, 600 g heavier than the original flywheel, has been selected to provide a suitable balance of engine response and flexibility.
We offer ignition systems designed and manufactured specifically for us. Rotor weight is selected according to the engine’s design and the desired riding characteristics, rather than engine capacity alone.
The benefit of variable ignition advance
Unlike the original fixed-advance magneto ignition, this system automatically adjusts the spark timing to engine speed. This can give the engine a smoother, more progressive response across its operating range. In trials riding, it helps the rider meter the power accurately and maintain better control in technical sections.
Specifications
- Type: preset keyed electronic ignition
- Ignition advance: variable
- Lighting: 12 V, with regulator
- Rotor weight: 3.5 kg, 600 g heavier than the original flywheel

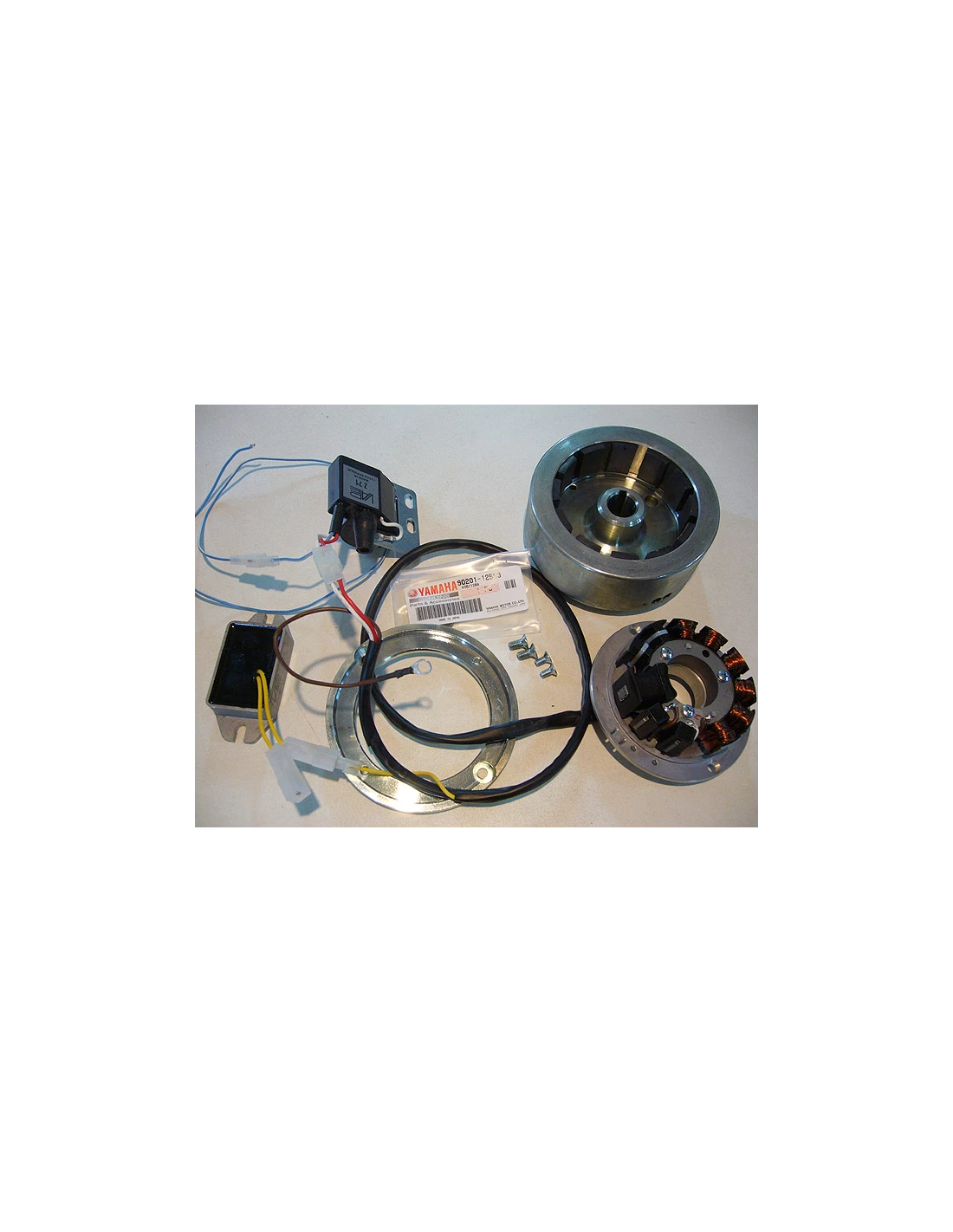

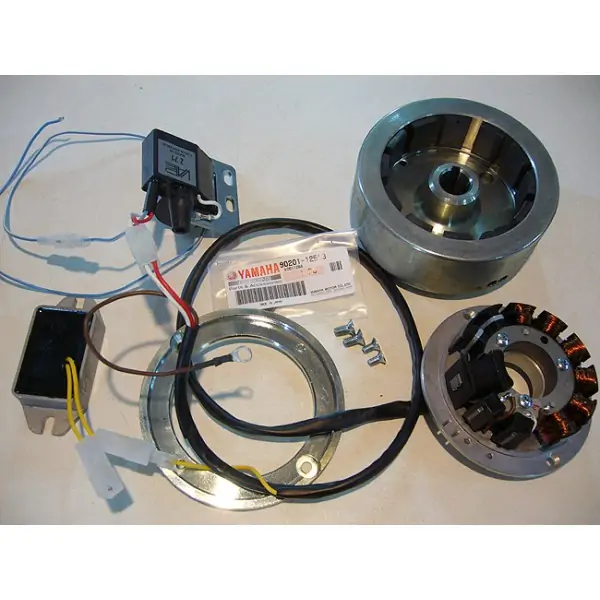

- Supplied with: regulator, spark plug cap, HT lead and fitting instructions
Compatibility:
- Yamaha TY 125
- Yamaha TY 175

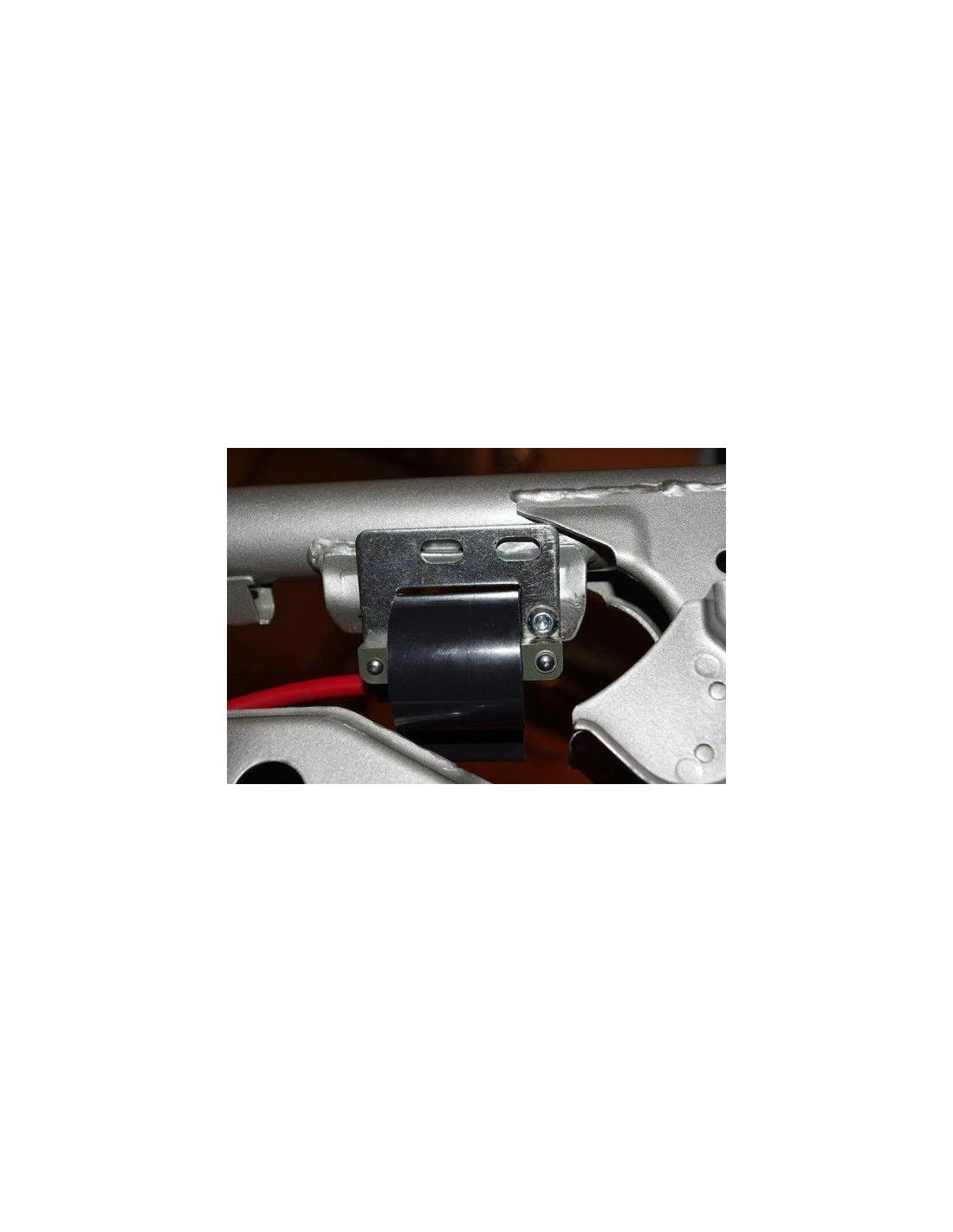

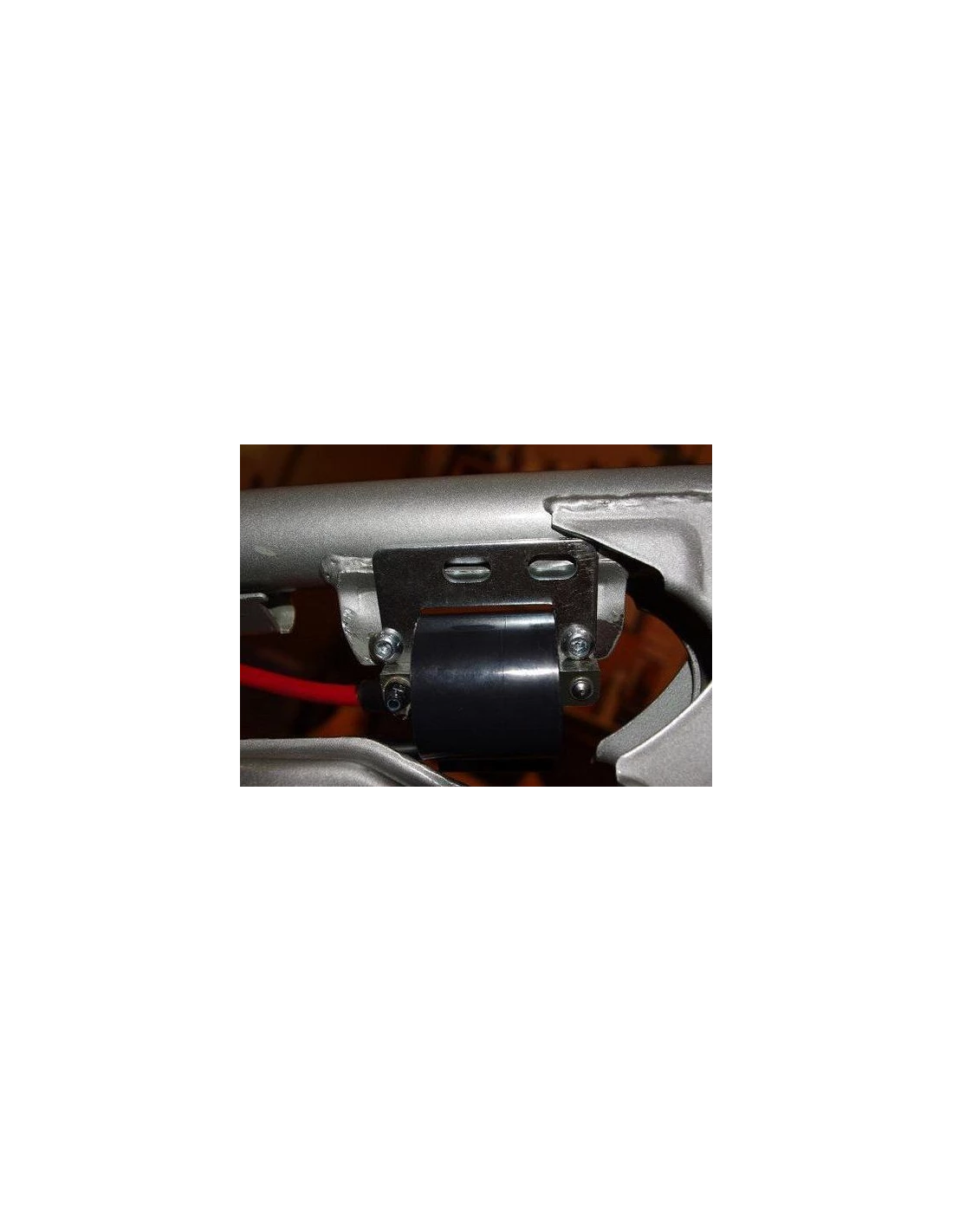

HT ignition coil fitting
The HT ignition coil, fitted under the fuel tank, is bulkier than the original. You may need to adjust the angle of the mounting brackets and drill the coil mounting plate to secure it with one or two bolts. This adaptation avoids cutting the frame. The coil can be fitted elsewhere, provided it is properly grounded.
Installation requires a 27 × 1.25 flywheel puller, ref. 339C-E, which is not included. The original puller is not suitable for this flywheel.
